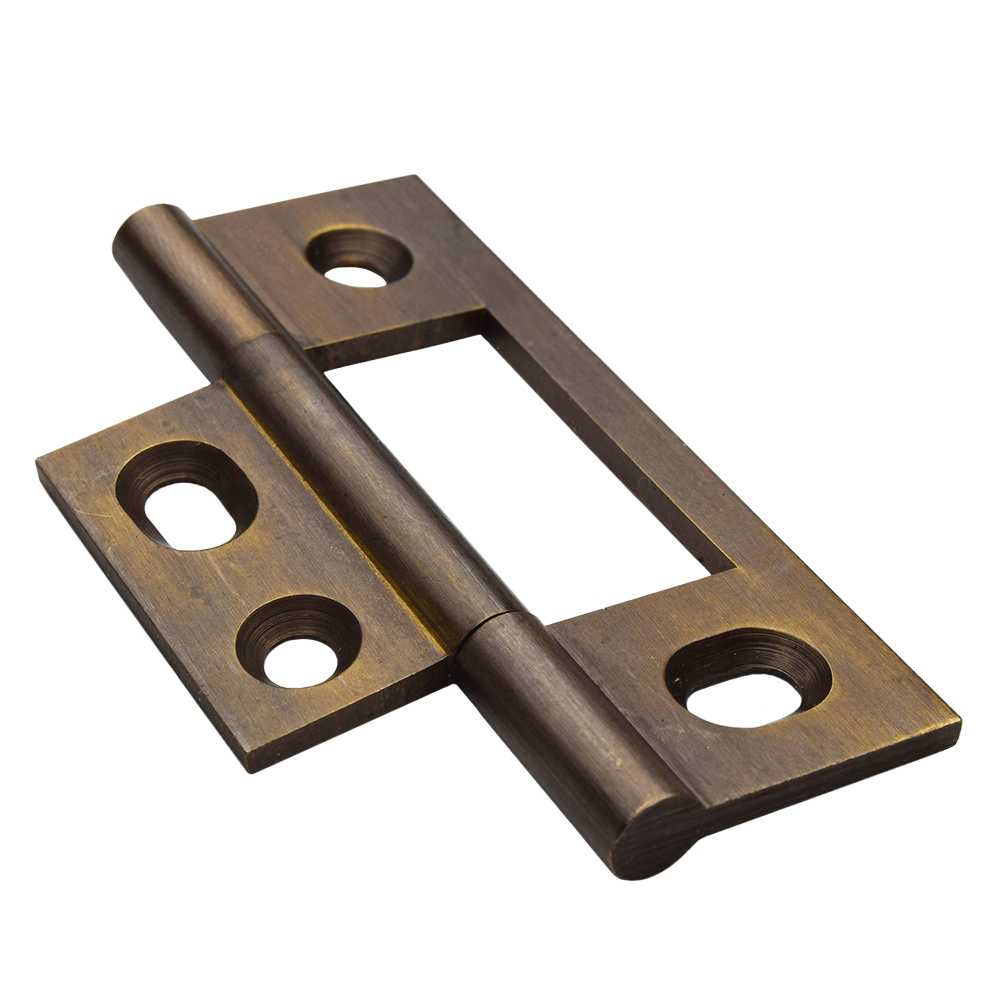

2-1/2″ Non-Mortised Hinges w/ Flat Tops

2-1/2″ Non-Mortised Hinges w/ Flat Tops

SKU: NM-7

In stock

$ 26.89

Key things to know about this product:

These hinges are sold per pair (2 individual hinges).

They are supplied with matching finished #6-3/4" brass screws and #6-3/4" zinc plated steel pilot screws for installation.

These hinges are sized to fit 3/4" - 1" thick cabinet doors and require a 2-3 degree back bevel for installation.

Product Specifications

Weight	0.20625 lbs
Brand	Horton Brasses
Unit of Measure	Pair
Height	2-1/2"
Width	1-1/2" wide when open
Thickness	3/32"

Finish

Clear

Add to Wishlist

Description
Reviews

Description

One of our most popular hinge, these non-mortise cabinet hinges are available in 7 finishes. Here it is featured with a flat top. We designed this hinge because our customers asked for an outstanding non-mortise hinge again and again. We believe this is the best non-mortised hinge on the market today.

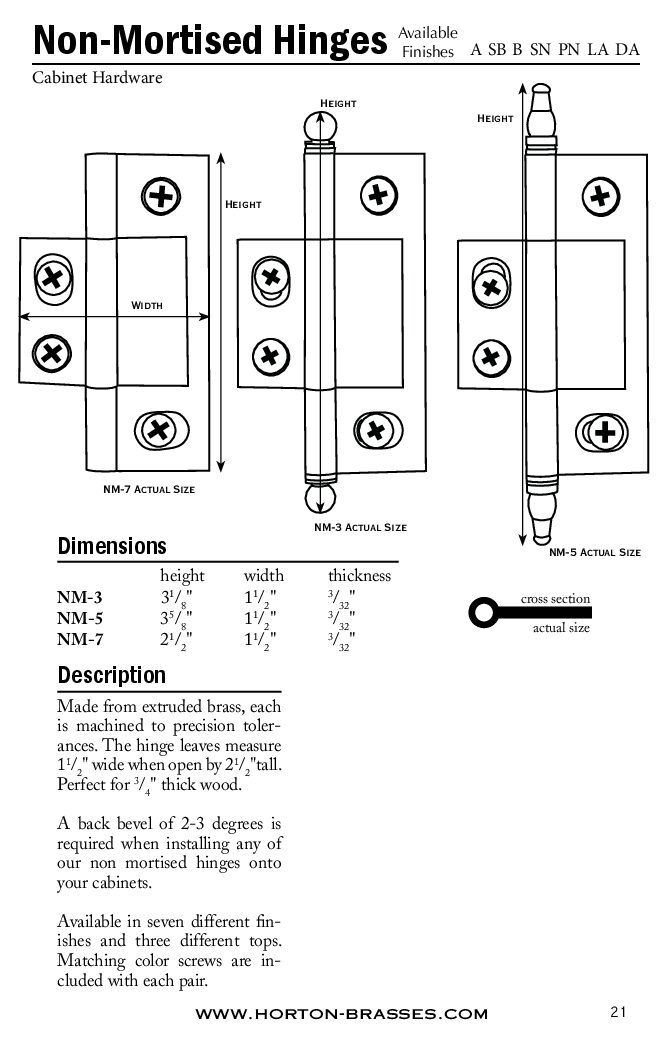

Made from extruded brass, each is machined to precision tolerances. The hinge leaves measure 1-1/2″ wide when open by 2-1/2″ tall. Perfect for 3/4″ thick wood.

Please note: You must put a back bevel in your cabinet doors when using ANY non mortise hinge. 2-3 degrees is plenty.

Do you want to use these hinges in a production environment? Feel free to make jigs and fixtures. Every hinge is exactly the same, and extremely precise. In fact, you can use the same jigs and fixtures for both NM-3, NM-5, and NM-7 non-mortised hinges.
